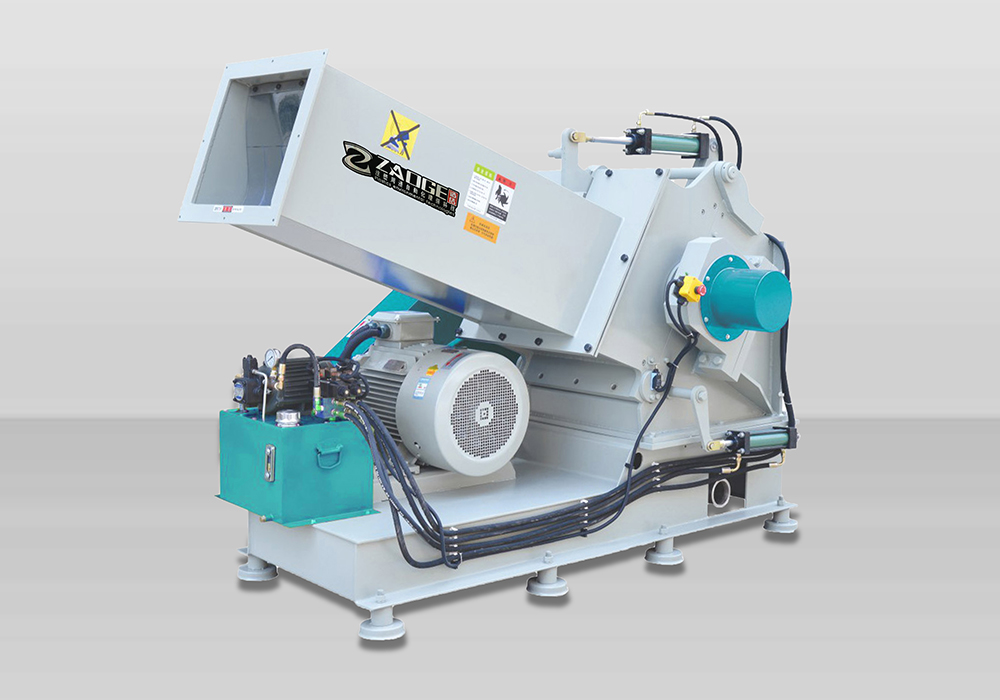

Pipe And Profile Plastic crusher

● More efficient: The extended feeding chute design ensures smoother and safer feeding, improving production efficiency. ● High torque: The crushing chamber and feeding chute are horizontal with a V-shaped cutting design, making cutting smoother and improving crushing efficiency. ● Easy maintenance: The bearings are externally mounted, and both the moving and static blades can be adjusted within the fixture, making maintenance and upkeep convenient. ● Super durable: The lifespan can reach 5-20 years, with high durability and the ability to work stably for long periods of time.

Products Details

The Pipe/profile Plastic Crusher is suitable for crushing and recycling PVC water pipes, PE pipes, and profiles with a diameter of less than 200mm. It features a special feeding method that extends the feeding process, making it safer. The cutting tools are made of Japanese NACHI material, with a "V"-shaped slanting design, which makes cutting smoother. The heavy-duty rotor bearing is externally mounted to better protect the crushing chamber and cutting tools. The power system adopts Dongguan motor, and the control components are Siemens or Taiwan Dongyuan, reducing power consumption, prolonging service life, and providing greater stability and safety during use.Equipped with Dongguan motors/Siemens motors, and controlled by Siemens/Schneider electric components, providing higher safety, fewer faults, a longer service life, and greater reliability.Equipped with an extended feeding design, making it more labor-saving and worry-free.

ZGT series

Mode

ZGT-660

ZGT-680

ZGT-780

Motor Power

37KW

45KW

75KW

Rotary diameter

600mm

600mm

600mm

Rotor Width

600mm

800mm

1000mm

Fixed blades

2*1PCS

2*2PCS

2*2PCS

Rotating blades

5*2PCS

5*2PCS

5*2PCS

Feed opening size

500*430mm

700*430mm

900*430mm

Cutting Chamber

600*560mm

800*560mm

1000*560mm

Weight

4000Kg

5000Kg

6000Kg

Dimensions  L*W*H mm

2450*1500*1850

2450*1700*1850

2450*2000*1850

Featuring a slant-cut blade design made with imported SKD-11, providing greater cutting force and higher efficiency.With a body thickness of 40mm, it is more durable and quieter.The Pipe/profile Plastic Crusher is suitable for crushing and recycling PVC water pipes, PE pipes, and profiles with a diameter of less than 200mm. It features a special feeding method that extends the feeding process, making it safer. The cutting tools are made of Japanese NACHI material, with a "V"-shaped slanting design, which makes cutting smoother. The heavy-duty rotor bearing is externally mounted to better protect the crushing chamber and cutting tools. The power system adopts Dongguan motor, and the control components are Siemens or Taiwan Dongyuan, reducing power consumption, prolonging service life, and providing greater stability and safety during use.Featuring a slant-cut blade design made with imported SKD-11, providing greater cutting force and higher efficiency.Equipped with Dongguan motors/Siemens motors, and controlled by Siemens/Schneider electric components, providing higher safety, fewer faults, a longer service life, and greater reliability.
